PUB-5 6w fb4 laser light

Features:
1. Private model products

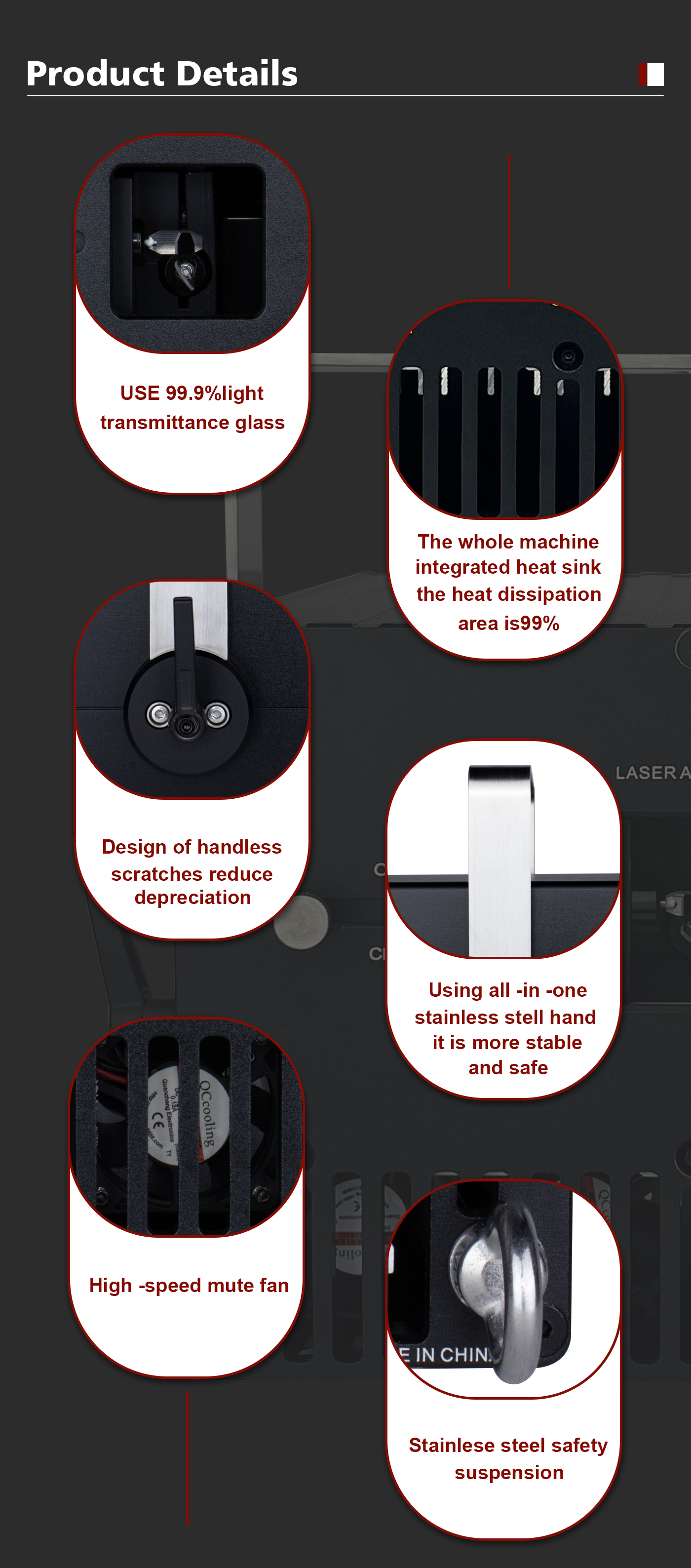

2. The sealing level reaches the IP54, and the first floor is completely sealed. In the use, the dust and smoke oil can be avoided into the chassis, so that the life and brightness of the extended laser can be extended.
3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source, and the heat dissipation area reaches 100%, which extend the life of the laser.
4.Build in Genuine FB4 Optional

5.Powerful, Affordable, and Easy to Use… QuickShow is a complete laser control system including both the QuickShow software and FB3QS hardware. Whether you're a new to lasers or a seasoned professional, you can get amazing results in just minutes using QuickShow. The software is packed with powerful features so that you can create both “live” and pre-programmed laser shows faster and easier than ever before. And our innovative Quick Tools allow you to create custom laser beam effects, graphics, text, animations, abstracts, and laser logos, with ease. We also include nearly 2,000 pre-programed laser cues, and hundreds of beautiful laser shows, absolutely FREE. If you want to create stunning laser light shows without spending a fortune

Laser power:  6W [Red: 1.5W 638nm; Green: 1.5W 520nm; Blue: 3W 445nm]
Cooling method: the whole machine is cooled by air cooling
Control signal mode:  TTL/analog automatic switching
Modulation voltage:  ≦100K
Laser divergence angle: <1.2mrad (full angle)
Laser spot size: 5*6.2mm at the light outlet
Galvanometer: AT35S 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scanning angle: up to 60°
Laser service life:  ≥10000 hours (maintain the test results in a constant temperature environment)
Laser class: Class IV
IP rate: IP54
Control mode: American pangolin FB4 control panel, automatic operation, DMX, master/slave mode, ILDA
Back control: FB4 LCD screen, FB4 network in/out, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in, fuse
Working temperature: -10C-45°C
Voltage:  100-250V
Rated power: 100W
Applicable:  stage, DJ, event disco, club, bar, etc
Warranty: 1 years

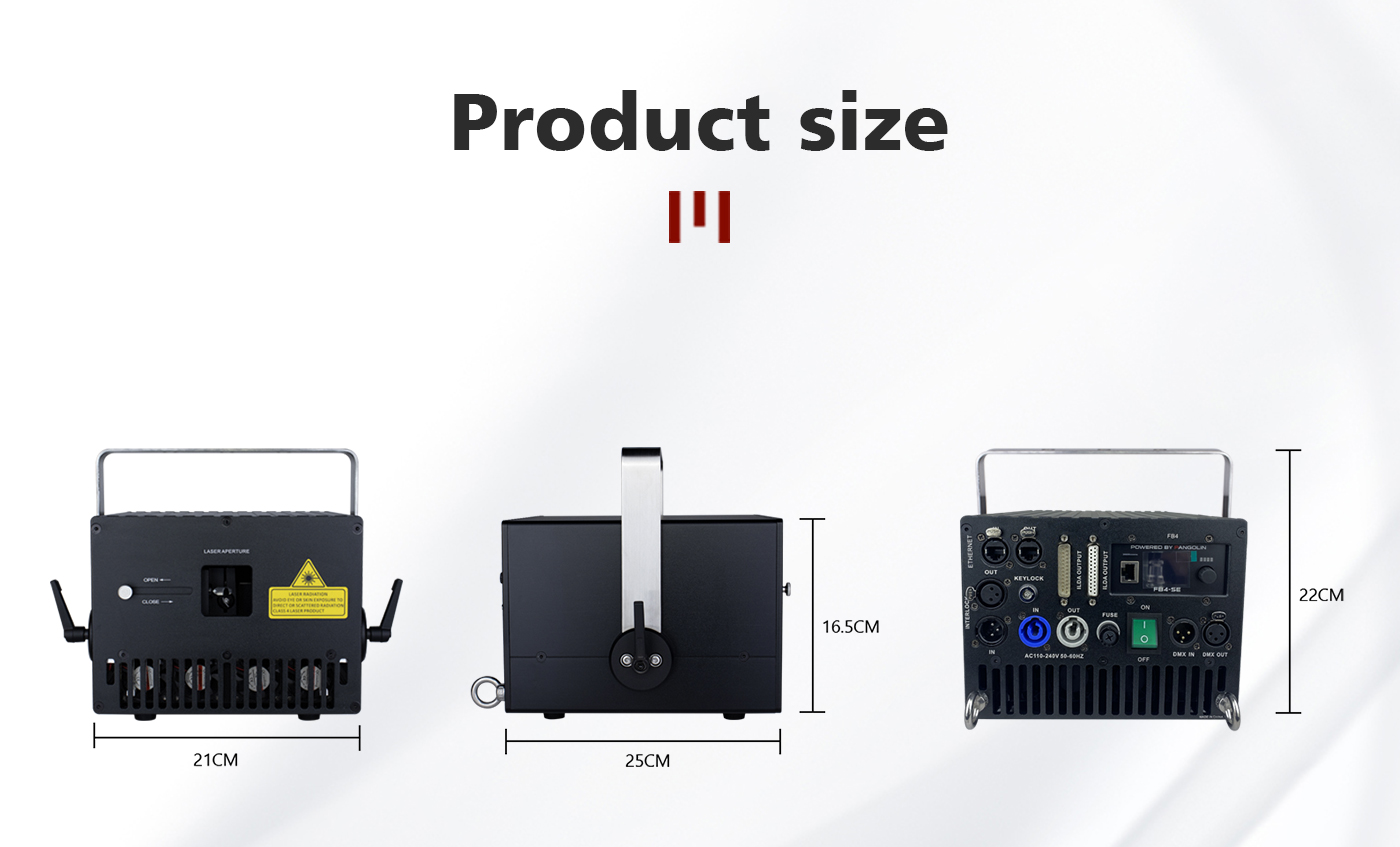

Size:  21*25*16.5cm /22cm (L*W*H)
Net Weight:  7kgs
Carton Packing: 34*31*22cm
Gross Weight: 9kgs
2IN1 carton: 36*33*49cm  18kgs
Flightcase size: 51*37*25cm 16kgs

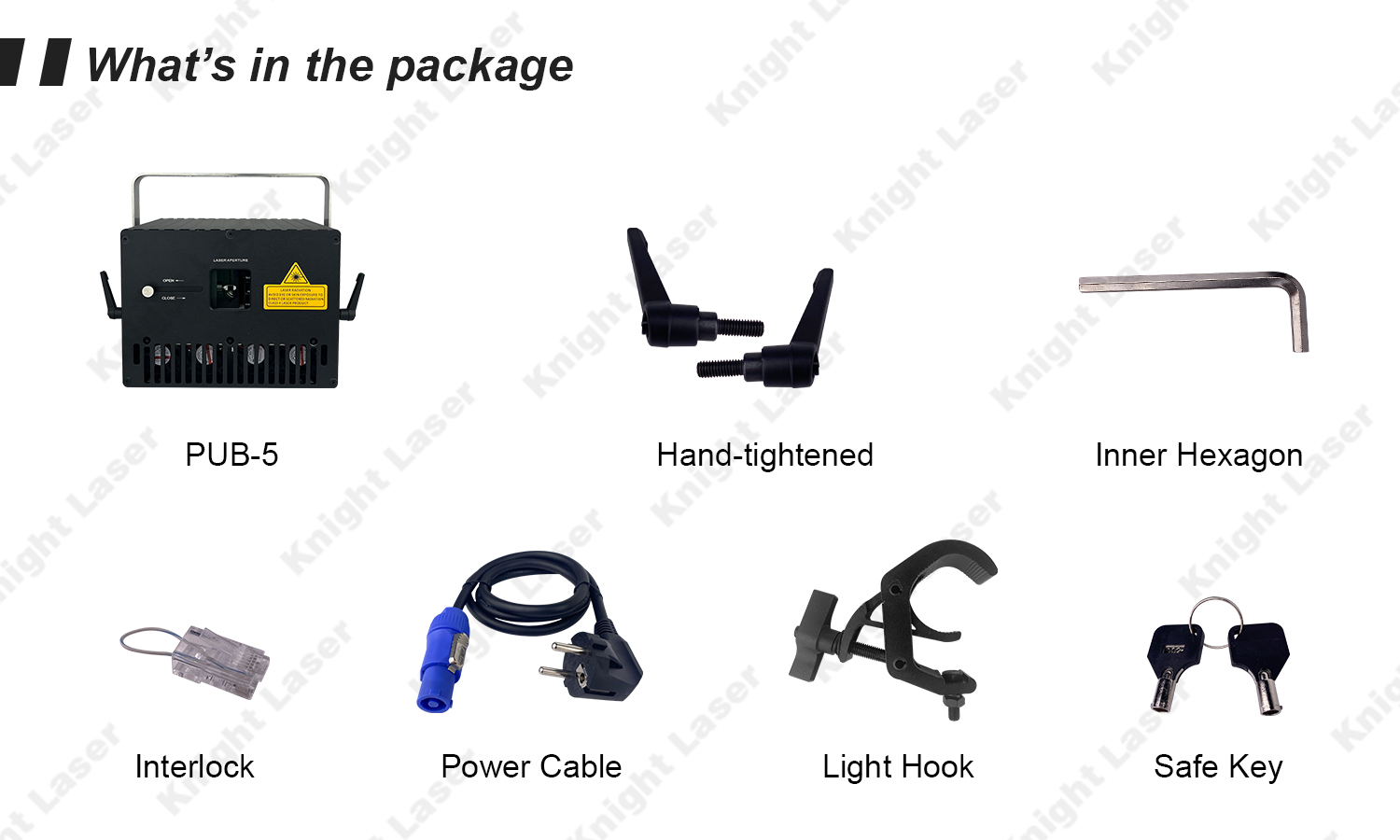

3.jpgpub5 配件图.jpg5.jpg
