| Laser power: | 15W [Red: 4W 638nm; Green: 4W 520nm; Blue: 7W 445nm]（不带温控） |
| Cooling method: | the whole machine is cooled by air cooling |
| Control signal mode: | TTL/analog automatic switching Modulation |
| modulation voltage: | ≦100K |
| Laser divergence angle: | <1.2mrad (full -angle) |
| Laser spot size: | 5*6.2mm at the light outlet |
| Galvanometer: | AT35S 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm) |
| Scan angle: | up to 60° |
| Laser service life: | ≥10000 hours (test results in the constant temperature environment) |
| Laser level: | Class IV |
| IP rate: | IP54 |
| Control mode: | SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control |

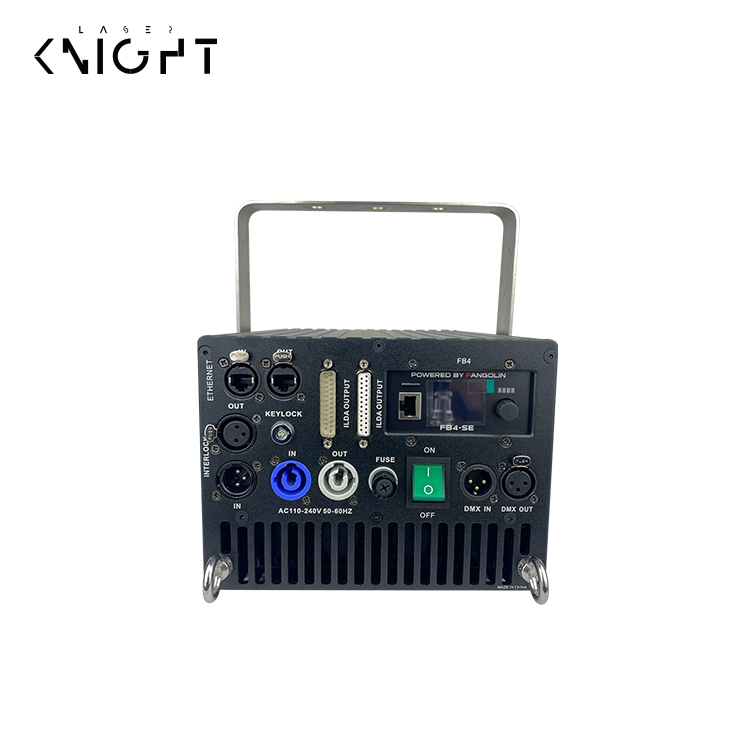

| Back control: | AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse |
| Work temperature: | -10C-45 ° C |
| Voltage: | 100-250V |
| Rated power: | 250W |
| Application: | Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc.. |
| Warranty: | 1 year |

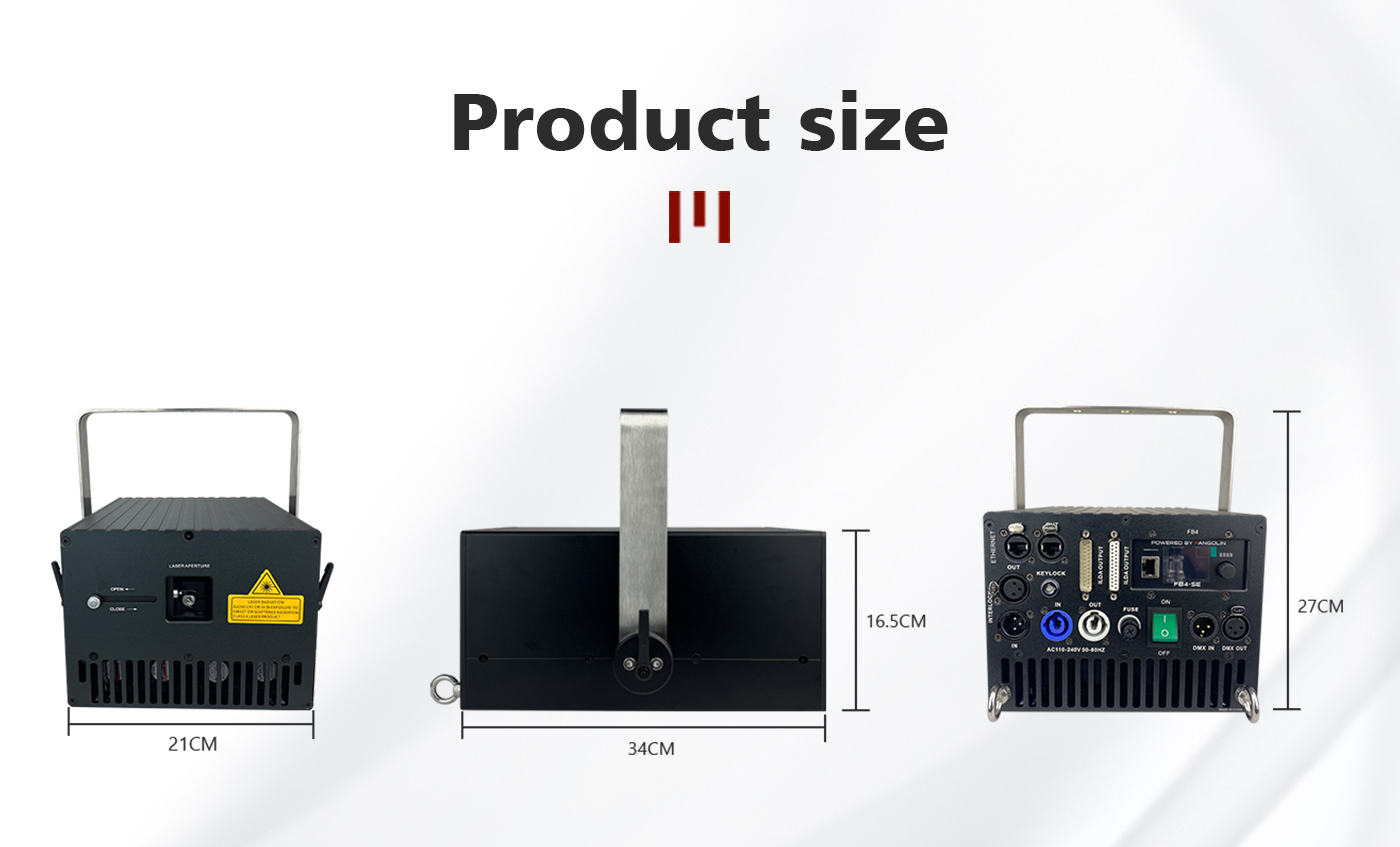

| Size: | 21*34*16.5cm/27cm (L*W*H) Net Weight: 10kgs |
| carton Packing ： | 45*31*22cm Gross Weight: 11kgs |
| 2IN1 carton： | 36*33*49cm 15kgs |
| flightcase size: | 45*36*23cm Gross weight: 16kgs |
