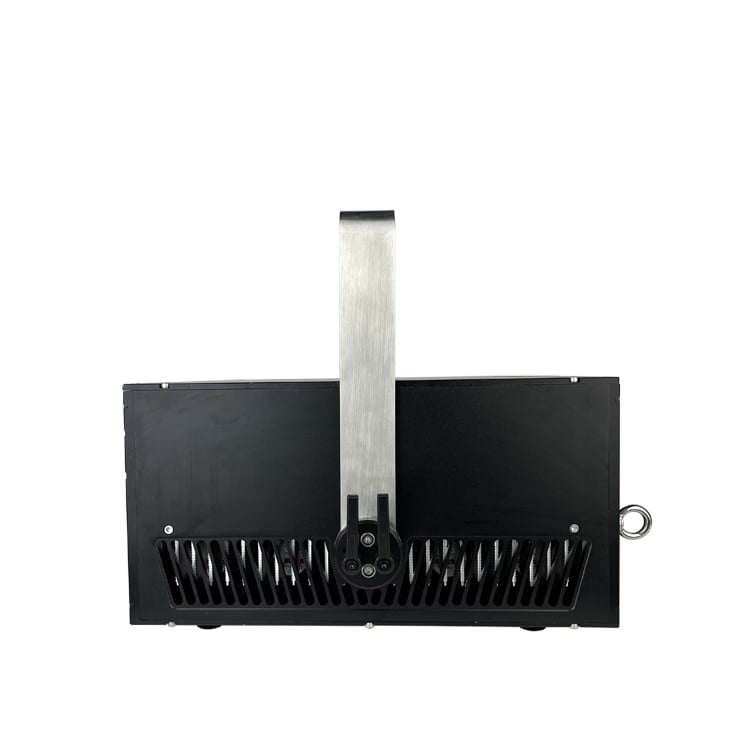

Max15 31w fb4 laser light

Features:
1. Private model products

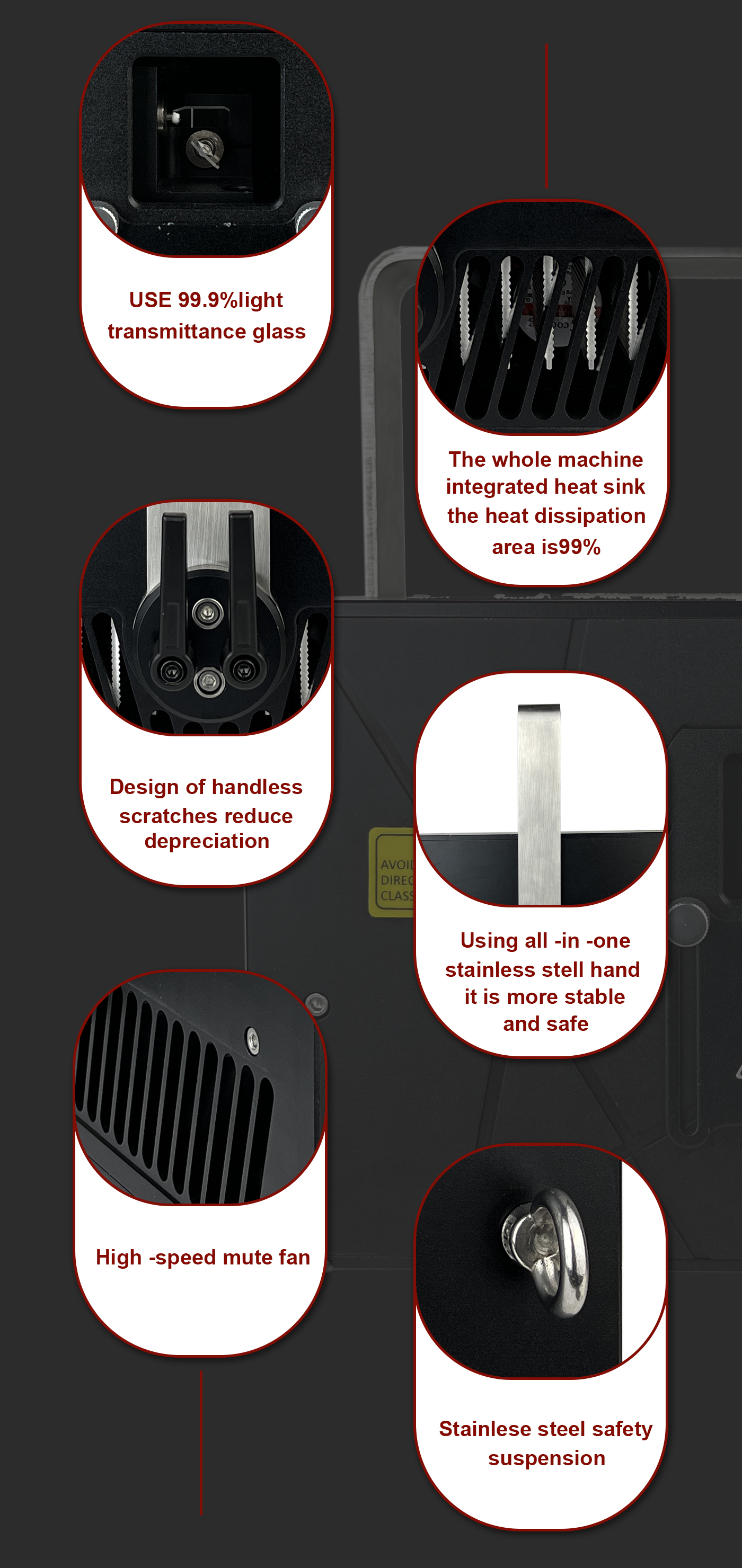

2. The sealing level reaches the IP54, and the first floor is completely sealed. In the use, the dust and smoke oil can be avoided into the chassis, so that the life and brightness of the extended laser can be extended.
3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source, and the heat dissipation area reaches 100%, which extend the life of the laser.
4.Build in Genuine FB4 Optional

5.Powerful, Affordable, and Easy to Use… QuickShow is a complete laser control system including both the QuickShow software and FB3QS hardware. Whether you're a new to lasers or a seasoned professional, you can get amazing results in just minutes using QuickShow. The software is packed with powerful features so that you can create both “live” and pre-programmed laser shows faster and easier than ever before. And our innovative Quick Tools allow you to create custom laser beam effects, graphics, text, animations, abstracts, and laser logos, with ease. We also include nearly 2,000 pre-programed laser cues, and hundreds of beautiful laser shows, absolutely FREE. If you want to create stunning laser light shows without spending a fortune

Laser Power:  31W [Red: 9W 638nm; Green: 10W 520nm; Blue: 12W 445nm]
Cooling method:  the whole machine is cooled by air cooling
Control signal mode: TTL/analog automatic switching Modulation voltage: ≦100K
Laser divergence angle:  <1.2mrad (full angle)
Laser spot size:  5*6.5mm at the light outlet
Galvanometer: AT50LB 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scanning angle:  up to 60°
Laser service life: ≥10000 hours (maintain the test results in a constant temperature environment)
Laser class: Class IV
IP rate: IP54
Control mode: American pangolin FB4 control panel, automatic operation, DMX, master/slave mode, ILDA
Back control: FB4 LCD screen, FB4 network in/out, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
Working temperature:  -10C-45°C
Voltage: 100-250V
Rated power:  380W
Applicable:  Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc.
Warranty: 2 years
Size: 30*36.5*20/32.5cm (L*W*H)
Net Weight: 19kgs
Carton Packing:  51*41*30cm
Gross Weight: 25kgs
Flightcase size: 62*48*36cm
Gross weight: 37KGS
Pelican case : 63*48.5*30cm
Gross weight: 37KGS

max15详情页_01(045f51500f).jpgmax15详情页_02(81ab58abc5).jpgmax15详情页_02-1(837c3918d0).jpg2(36f3d385a1).jpg3(64f0796556).jpg3-1.jpgmax15详情页_03.jpgmax-15 配件图(8ed011297d).jpg5(997e5ba07f).jpgmax15详情页_04(5cd83e1f5b).jpg
