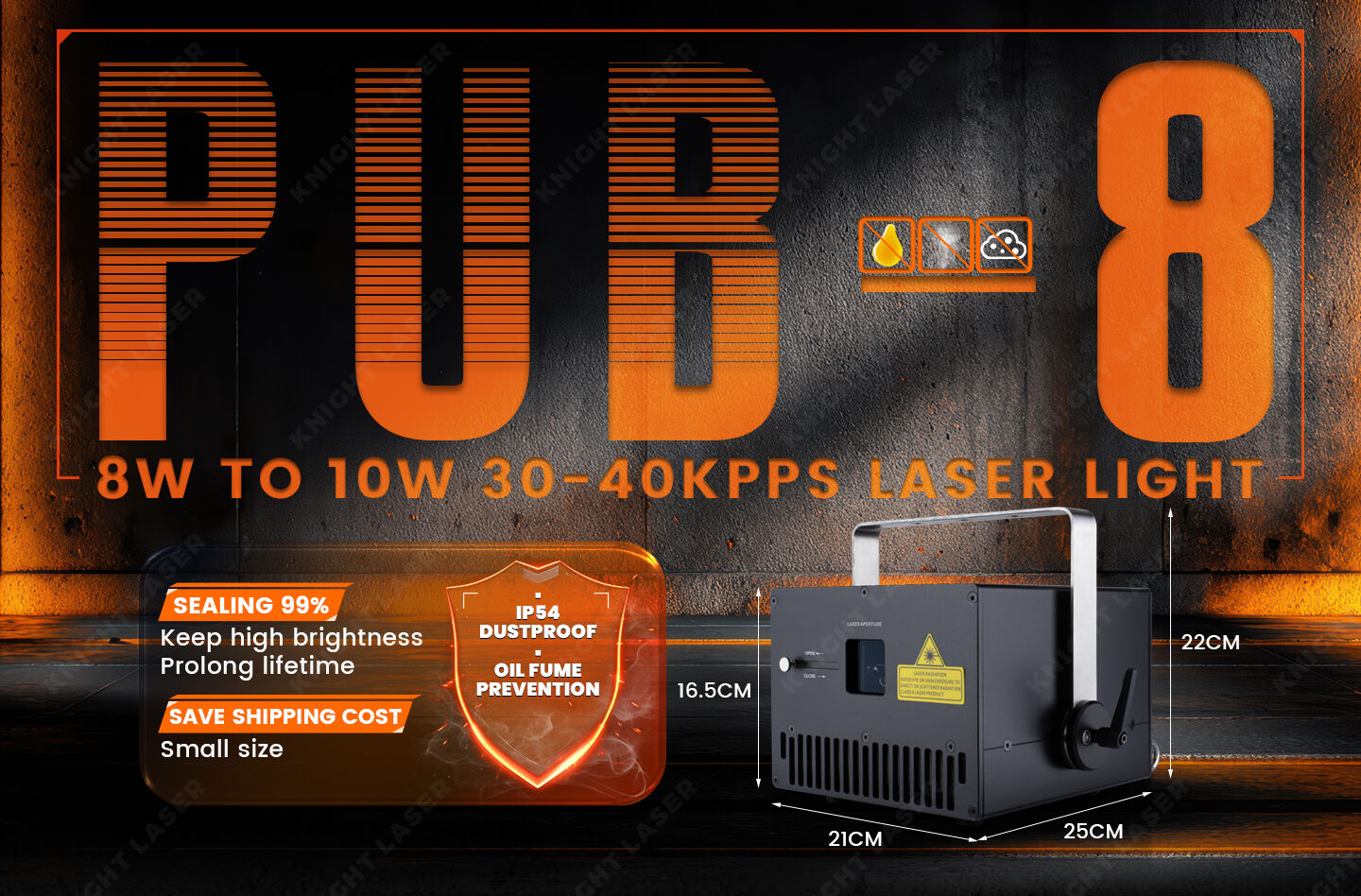

Pub-8 8w rgb laser light

Features:
1. Private model products

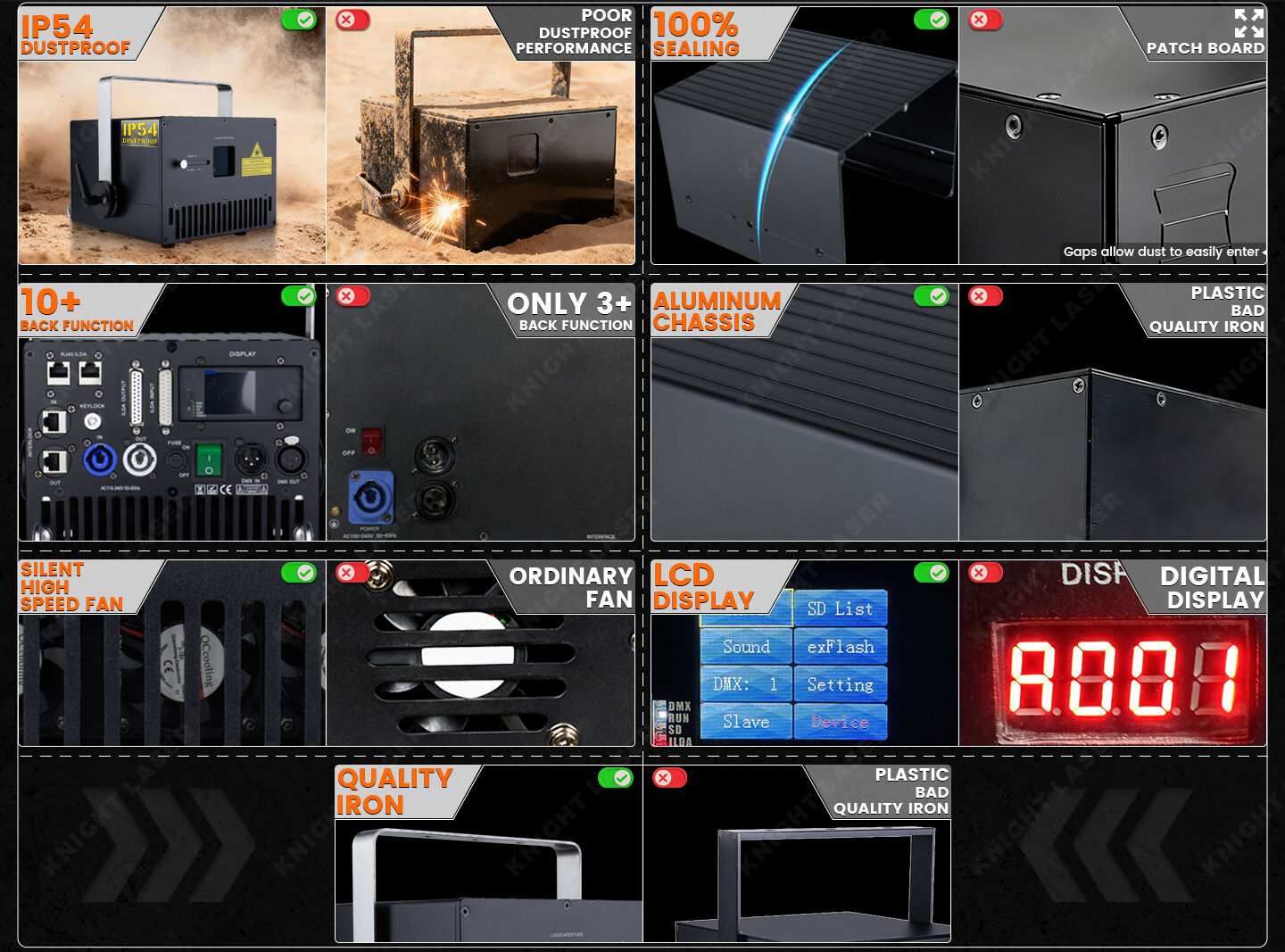

2. The sealing level reaches the IP54, and the first floor is completely sealed. In the use, the dust and smoke oil can be avoided into the chassis, so that the life and brightness of the extended laser can be extended.
3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source, and the heat dissipation area reaches 100%, which extend the life of the laser.

Laser power:	8W [Red: 2W 638nm; Green: 2W 520nm; Blue: 4W 445nm]
Cooling method:	the whole machine is cooled by air cooling
Control signal mode:	TTL/analog automatic switching Modulation
modulation voltage:	≦100K
Laser divergence angle:	<1.2mrad (full -angle)
Laser spot size:	5*6.2mm at the light outlet
Galvanometer:	AT35S 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scan angle:	up to 60°
Laser service life:	≥10000 hours (test results in the constant temperature environment)
Laser level:	Class IV
IP rate:	IP54
Control mode:	SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control
Back control:	AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
Work temperature:	-10C-45 ° C
Voltage:	100-250V
Rated power:	250W
Application:	Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc..
Warranty:	1 year
Size:	213416.5cm/27cm (LWH) Net Weight: 10kgs
carton Packing ：	453122cm Gross Weight: 11kgs
2IN1 carton：	363349cm 15kgs
flightcase size:	453623cm Gross weight: 16kgs
