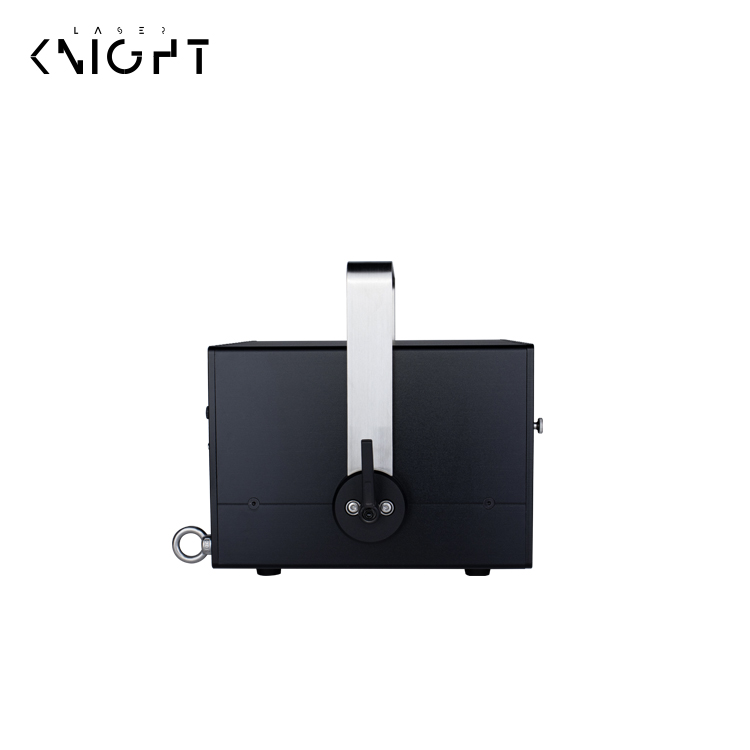

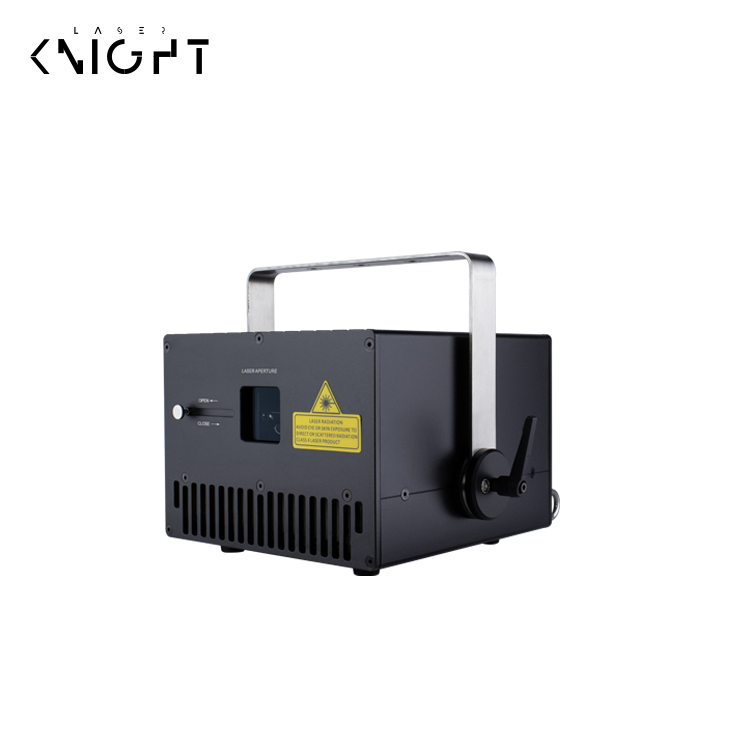

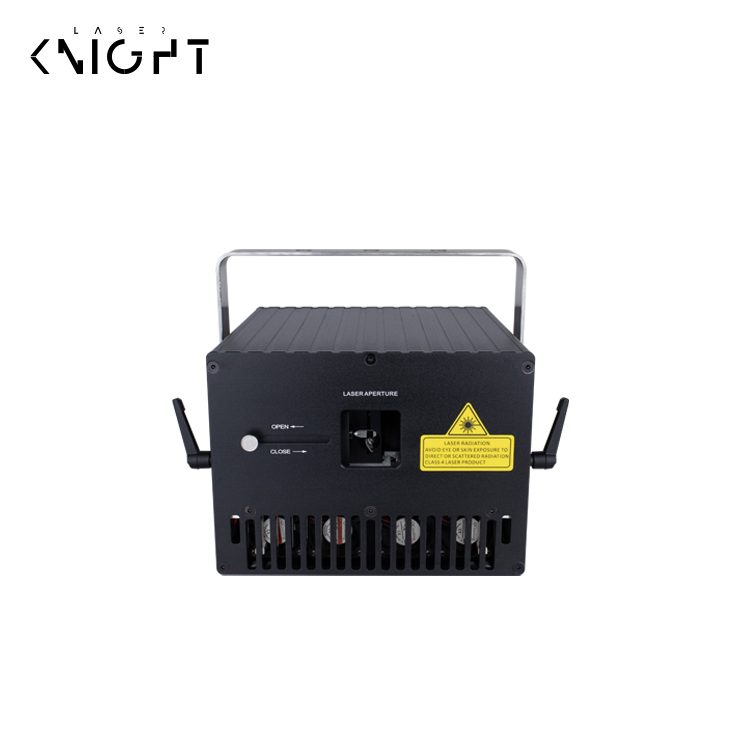

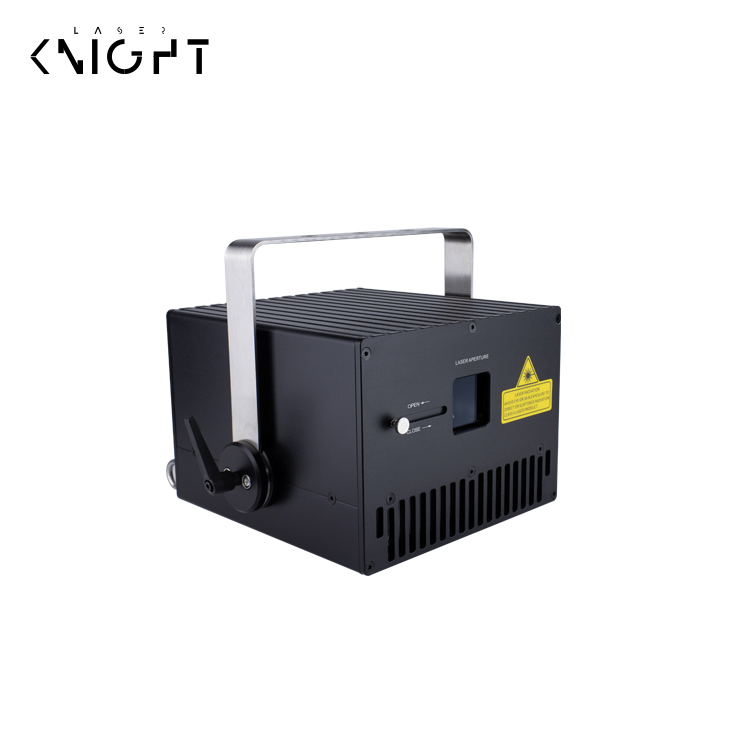

PUB-5 6w rgb laser light

Features:
1. Private model products
2. The sealing level reaches the IP54, and the first floor is completely sealed. In the use, the dust and smoke oil can be avoided into the chassis, so that the life and brightness of the extended laser can be extended.
3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source, and the heat dissipation area reaches 100%, which extend the life of the laser.

Laser power:	6W [Red: 1.5W 638nm; Green: 1.5W 520nm; Blue: 3W 445nm]
Cooling method:	the whole machine is cooled by air cooling
Control signal mode:	TTL/analog automatic switching
Modulation voltage:	≦30K
Laser divergence angle:	<1.2mrad (full angle)
Laser spot size:	3*6.5mm at the light outlet
Galvanometer:	AT35S 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scanning angle:	up to 60°
Laser service life:	≥10000 hours (maintain the test results in a constant temperature environment)
IP rate：	IP54

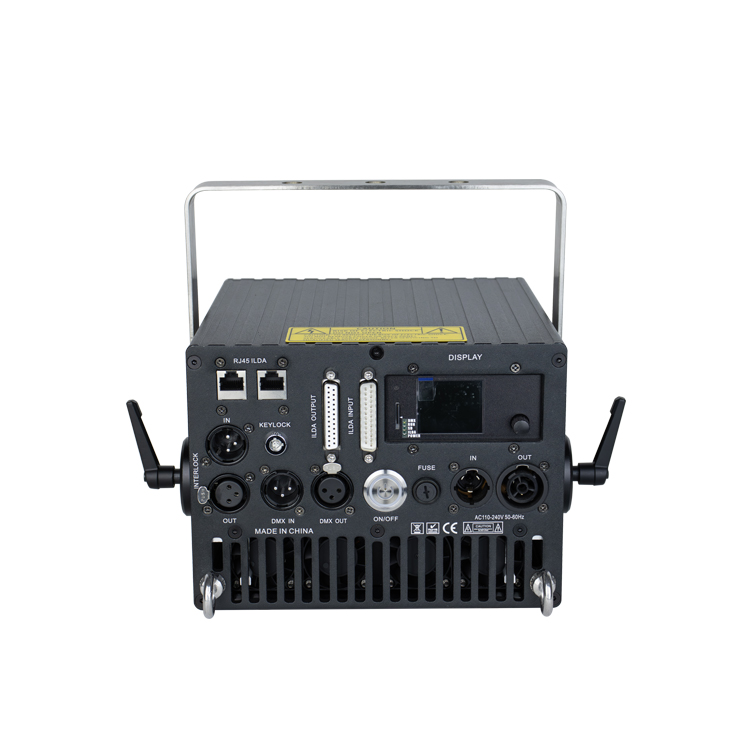

Control mode:	SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA software control
Working temperature:	-10C-45°C
Voltage:	100-250W
Rated power:	100W
Applicable:	stage, DJ, event disco, club, bar, etc
Warranty:	1 years
Size:	212516.5cm /22cm (LWH)
Net Weight:	5.5kgs
Carton Packing:	343122cm
Gross Weight:	6.5kgs
2IN1 carton：	363349cm 15kgs
flightcase size:	343623cm 11kgs
