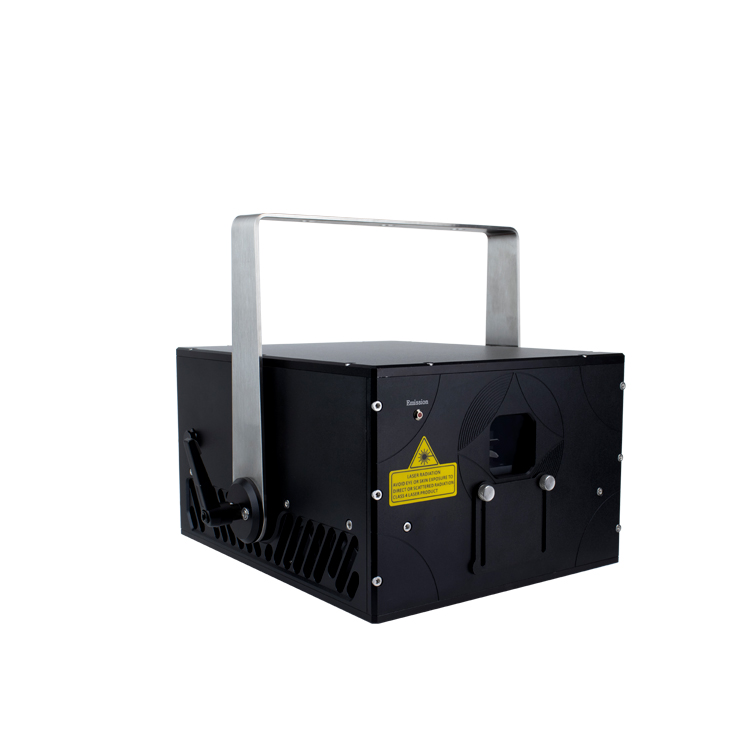

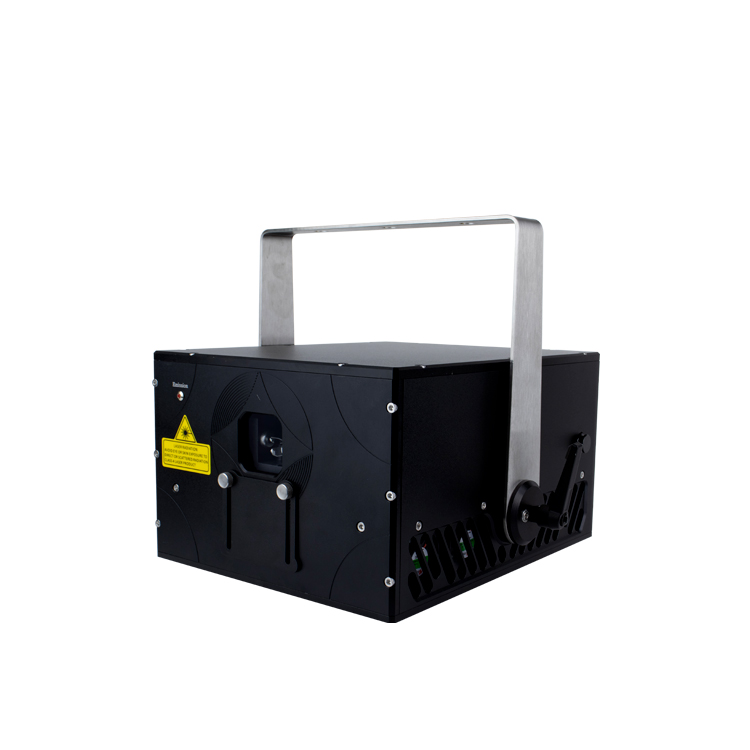

R-15 15w rgb laser light Built-in FB4

Features:
1. Private model products
2. The sealing level reaches the IP65

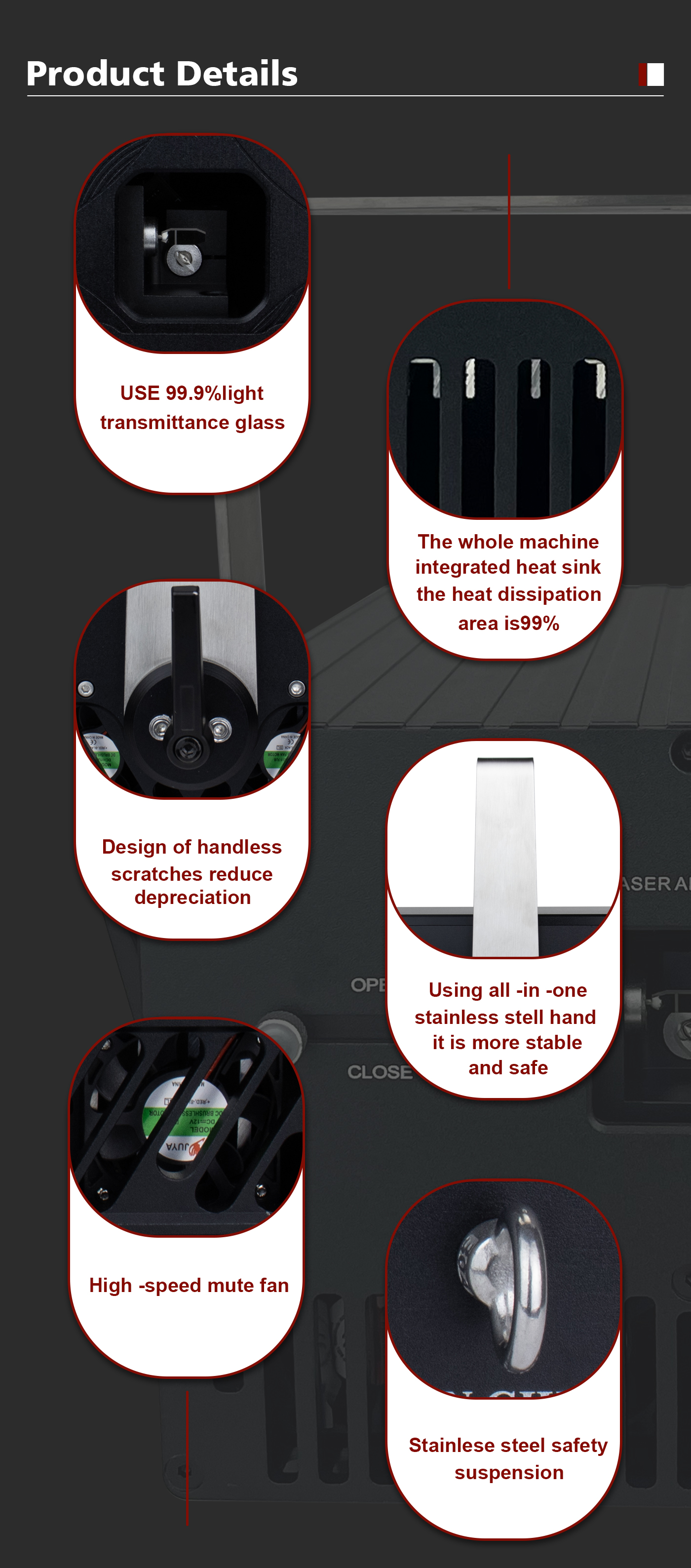

3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source,
and the heat dissipation area reaches 100%, which extend the life of the laser.
4. Build in Genuine FB4 Optional

5.Powerful, Affordable, and Easy to Use… QuickShow is a complete laser control system including both the QuickShow software and FB3QS hardware. Whether you're a new to lasers or a seasoned professional, you can get amazing results in just minutes using QuickShow. The software is packed with powerful features so that you can create both “live” and pre-programmed laser shows faster and easier than ever before. And our innovative Quick Tools allow you to create custom laser beam effects, graphics, text, animations, abstracts, and laser logos, with ease. We also include nearly 2,000 pre-programed laser cues, and hundreds of beautiful laser shows, absolutely FREE. If you want to create stunning laser light shows without spending a fortune

Laser power:  15W [Red: 5W 638nm; Green: 5W 520nm; Blue: 5W 445nm]

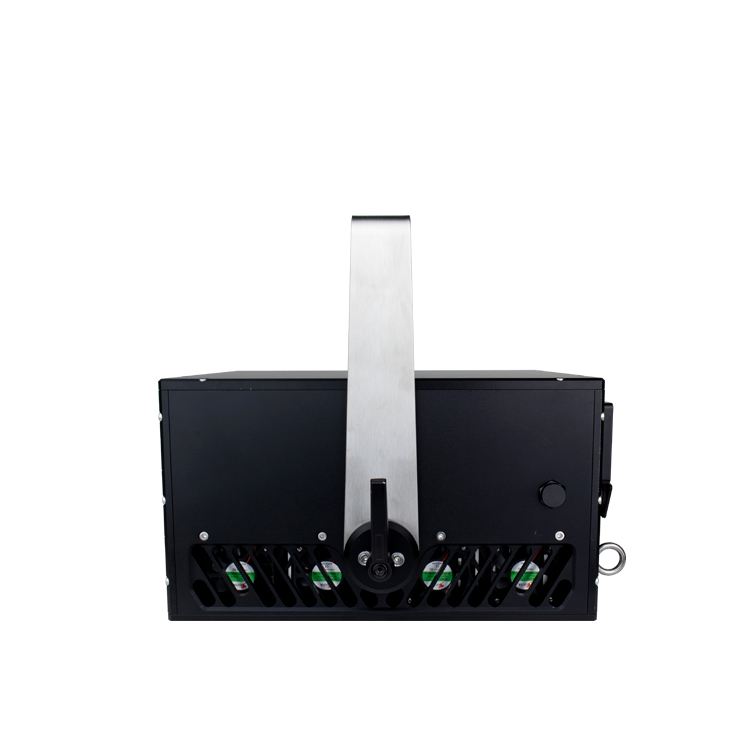

Cooling method:  the whole machine is cooled by air cooling
Control signal mode: TTL/analog automatic switching Modulation voltage: ≦100K
Laser divergence angle: <1.2mrad (full angle)
Laser spot size:  5*6.2mm at the light outlet
Galvanometer:  AT50M 40kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scanning angle: up to 60°
Laser service life:   ≥10000 hours (maintain the test results in a constant temperature environment)
Laser class: Class IV
IP rate: IP65
Control mode:  American pangolin FB4 control panel, automatic operation, DMX, master/slave mode, ILDA

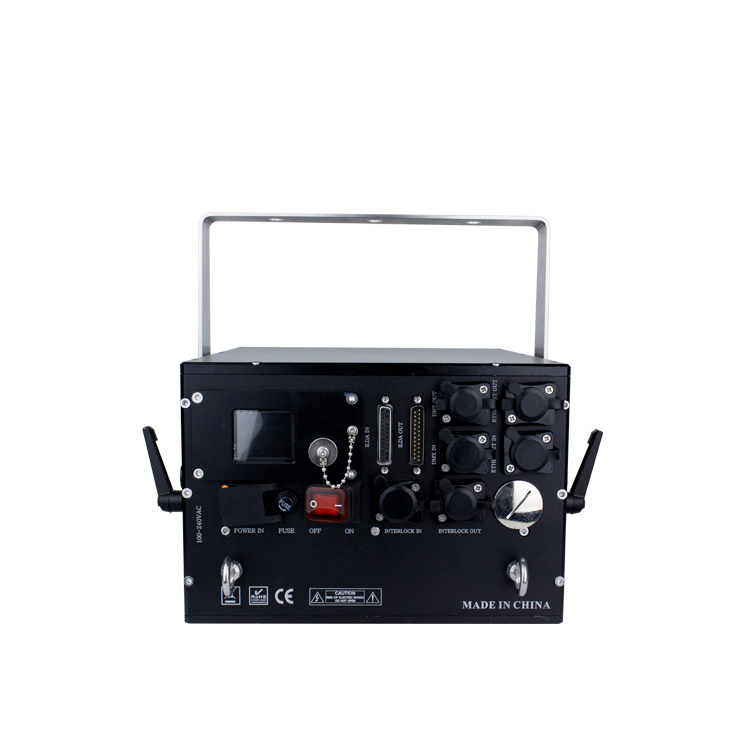

Back Controls:  FB4 LCD screen, FB4 network in/out, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in, fuse
Working temperature:  -10C-45°C
Voltage: 100-250V
Rated power: 200W
Applicable: Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc.
Warranty: 2 years

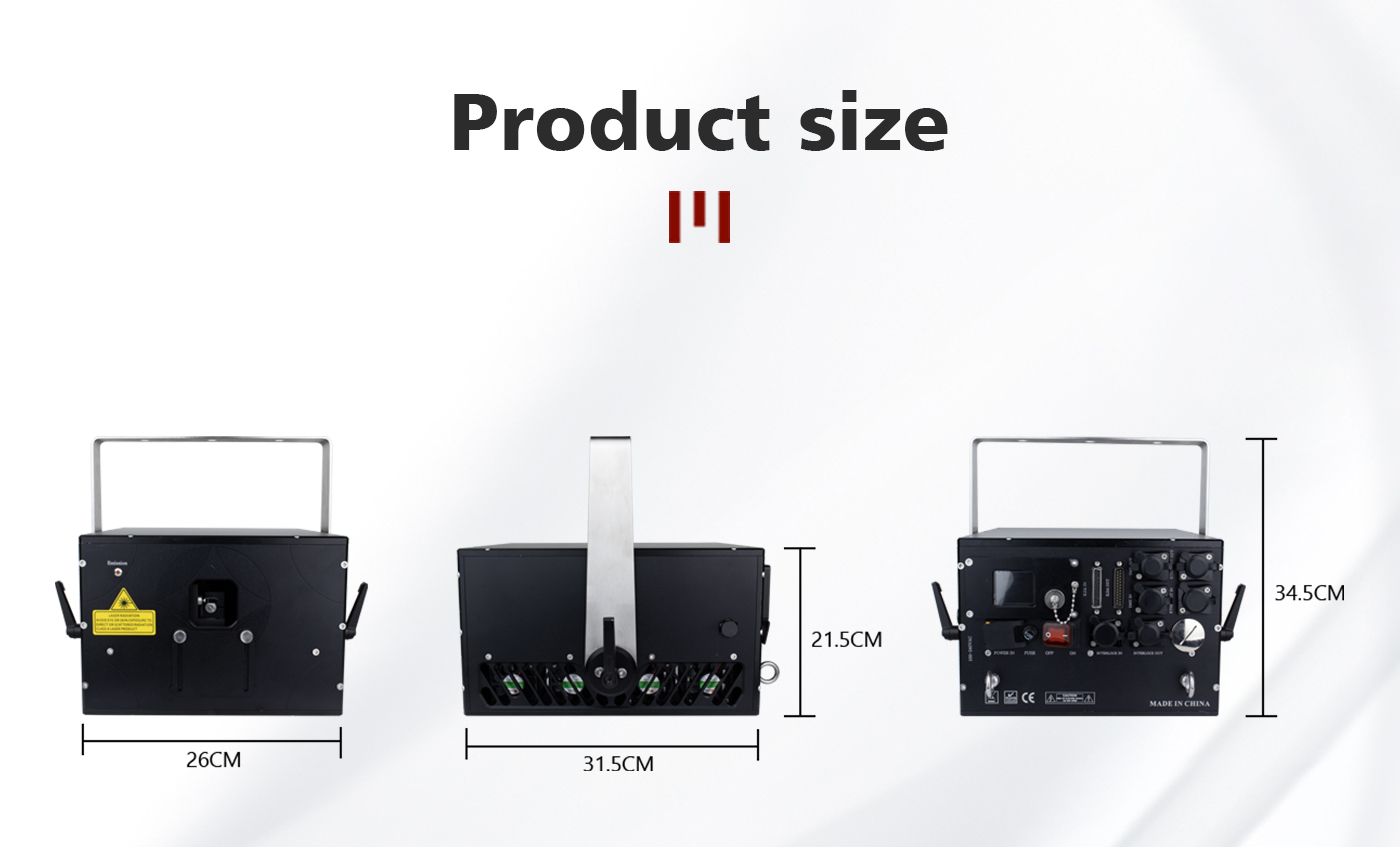

Size:  28*32*20/30cm (L*W*H)

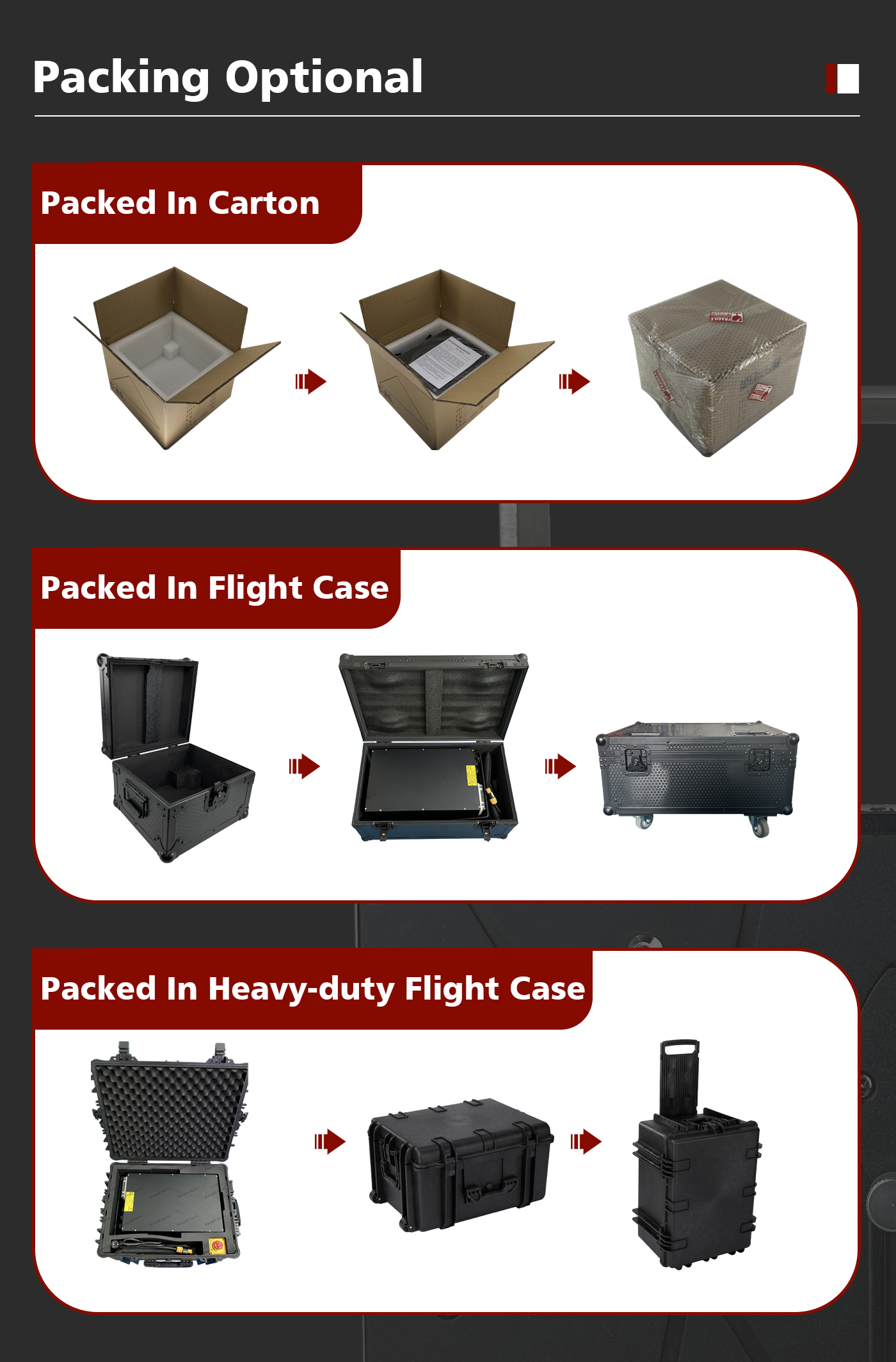

Carton Packing: 61*42*331cm
Gross Weight: 26kgs
Flightcase size:  42.5*69*40.5cm
Gross weight:  37KGS
