| Laser light source: | adopt imported laser, high stability, long service life |
| Laser design: | There is a power -off protection system device, dustproof, moisture -proof, anti -corrosion, rust -proof, and good sealing system. The efficient cooling and cooling area covers 50%of the chassis area |
| Laser power: | 10W red 638nm: 2W green -520nm: 2W Blue 445nm: 6W |
| Built-in temperature control system | utomatically adjust the temperature, can work stable at -40 °-45 ° |
| Safety device: | stabilize high control system, start the key to safely, laser initial delay safety starting device, scanning failure protection device. |
| Horizontal, vertical: | 40 degrees, 270 degrees; 16bit |

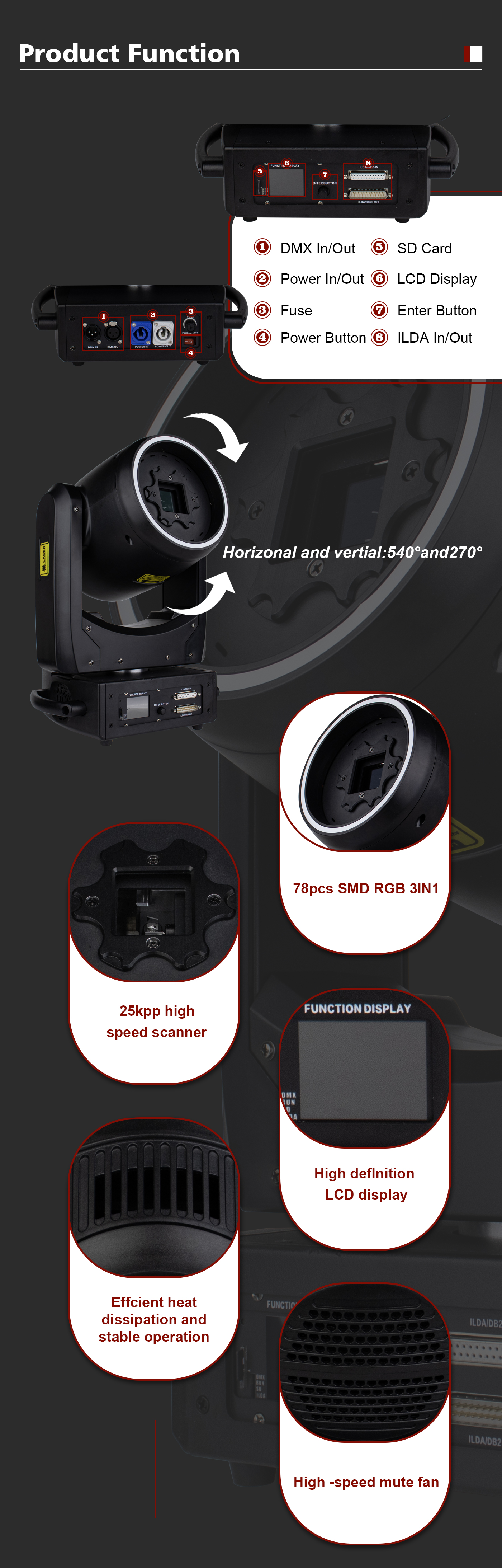

| Display board: | color screen liquid crystal display, can be switched in Chinese and English, positive and reversal switching |
| fantasy lamp belt: | Red, green, blue and white color LED lamp with 24 |
| working voltage input: | 90-250V-50/60Hz (global universal range) |
| Horizontal and vertical: | 540 ° and 270 °; 16bit |
| output power: | ≤150 watt |
| Laser emitting angle： | <1.6mrad (full-angle (full-angle angle) |
| Laser spot size: | <6.5mm |
| graphics scanning speed: | DT30K-vibration mirror |
| scanning angle： | +/- 30 degrees (60 degrees) |
| DMX channel number: | 28 channel/SD laser control system control system |
| control Method： | built -in single -chip operating program main control board, ILDA standard 25 -core connection line/sound control/self-walking/DMX512/main collaboration/built -in SD storage card has rich animation+lines+text materials Hundreds of animated lines for the effect of the stroke effect memory can be combined with the American pangolin software FB4/FB3 device and the computer PC synchronization. |
| 1in1 Carton： | 48*34*26cm Weight 10kg |
| 2in1 carton： | 9*36*56cm Weight 21kg |
| applications Scene: | Bar, KTV, Performing Arts, Song and Dance Hall, Hotel Banquet Hall, Entertainment Place, etc. |
