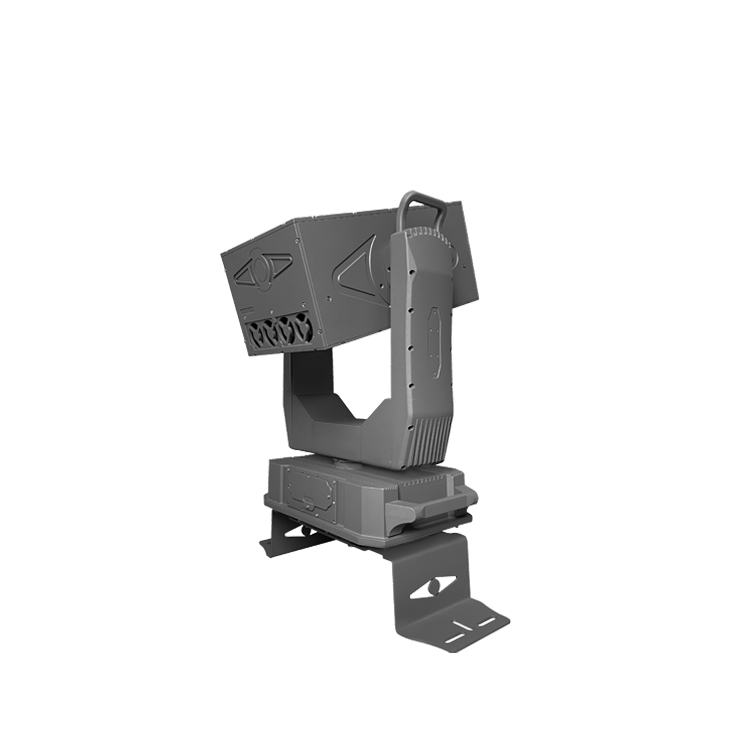

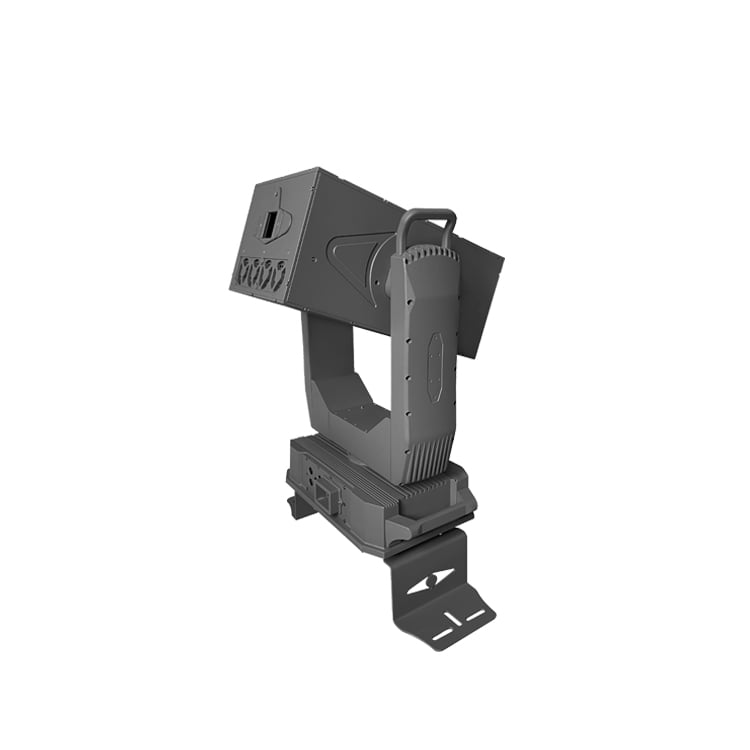

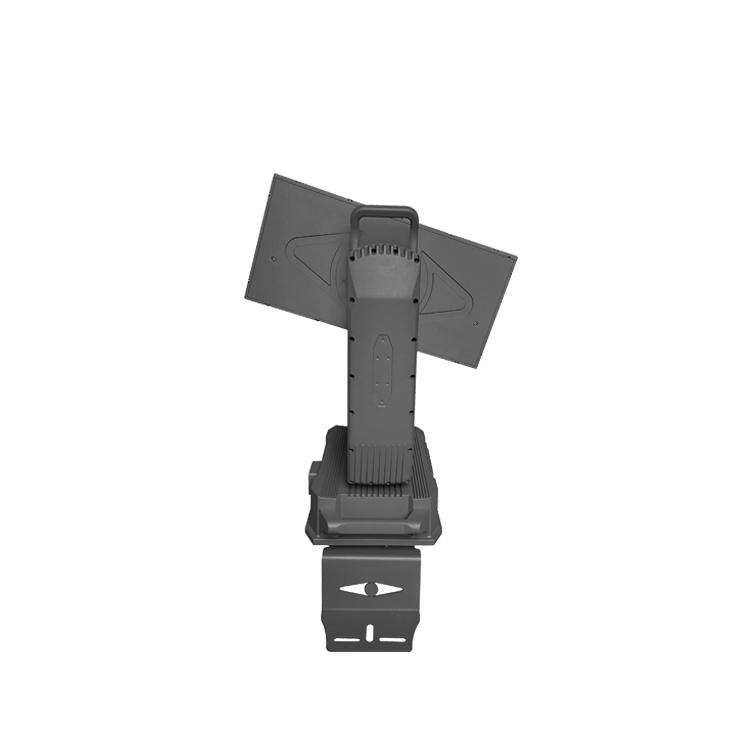

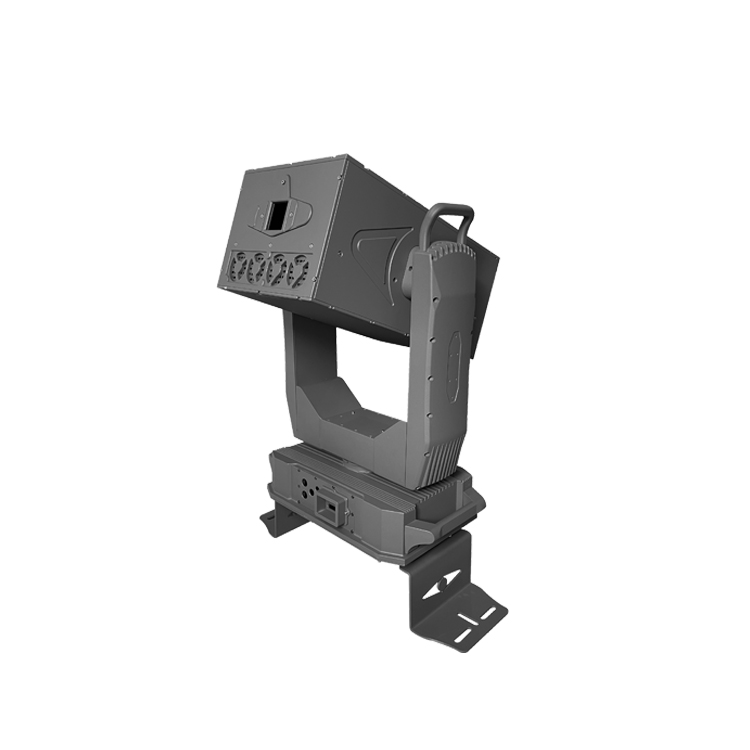

IP65 40W MOVING HEAD LASER

Product features:

1. Laser light source: imported laser, high stability and long service life.

2. Laser design: with power-off protection system, waterproof, dustproof, moisture-proof, anti-corrosion, anti-rust, and good sealing system, efficient cooling and heat dissipation area covers 50% of the chassis area.

3. Built-in temperature control system, automatic temperature adjustment, can work stably at -40°- 45°.

4. Safety device: stable high control system, safe start key, laser initial delay safety start device, adjustable safety shading plate, scanning failure protection device.

5. Can be built-in American Pangolin FB4 professional laser light control software, can play programmed beam/animation laser program offline.

6. Automatic timer switch function

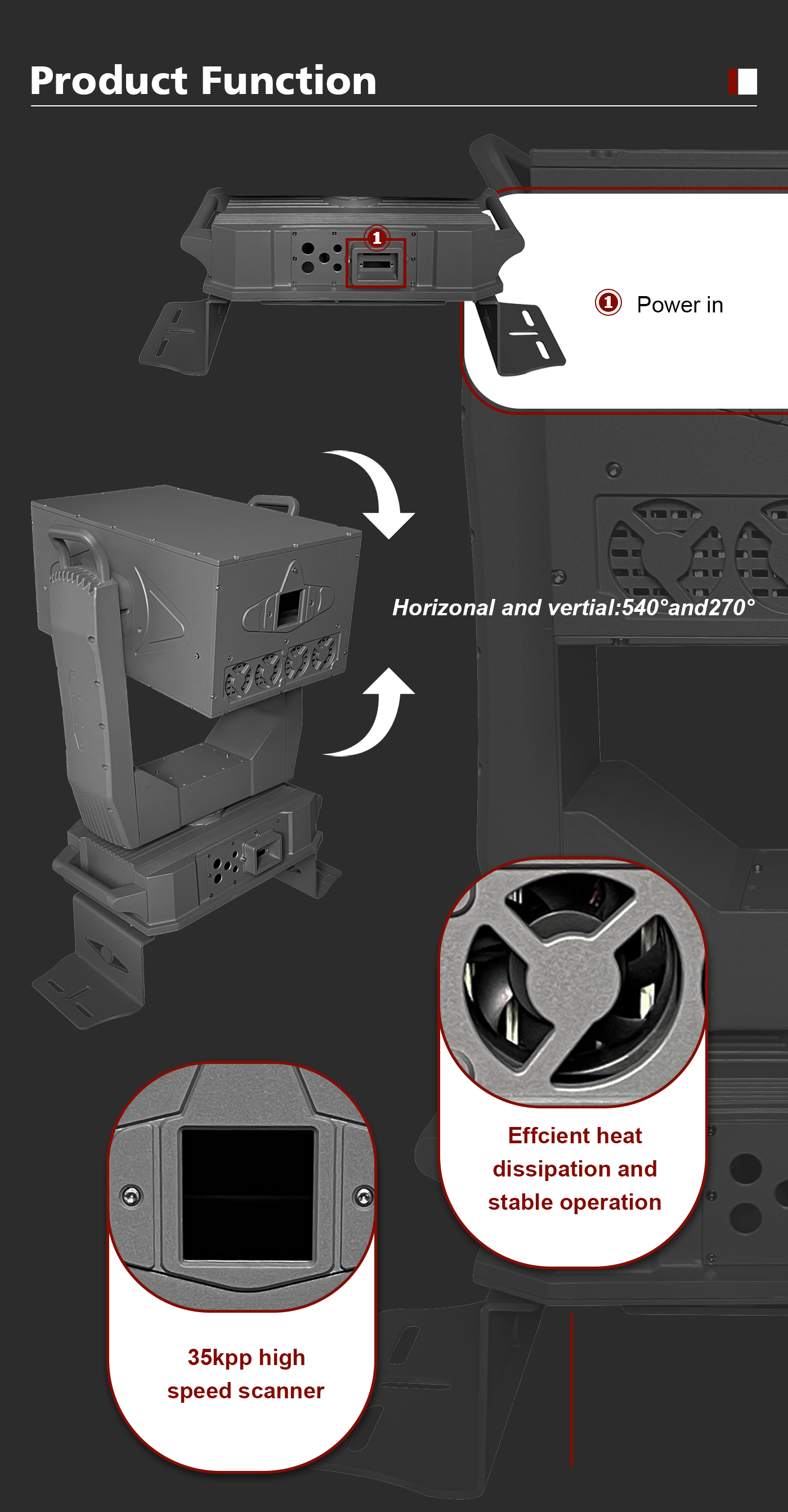

7. X-axis rotation angle 540 degrees / Y-axis rotation angle 270 degrees

Laser power:	40W Red -638nm: 12W Green 520nm: 13W Blue445nm: 15W

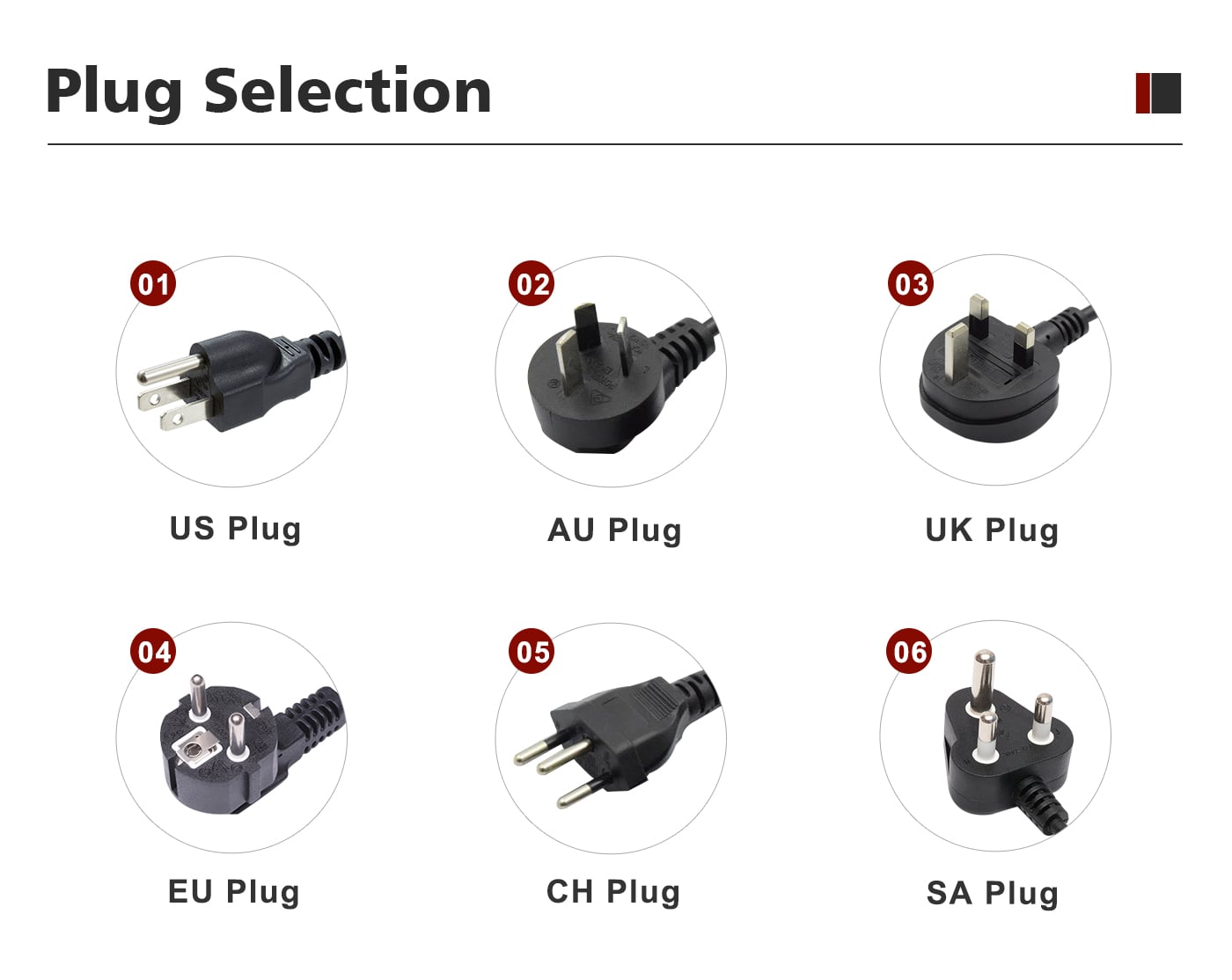

Working voltage input:	110V-250V-50/60hz (global universal range)
Maximum power consumption of the whole machine:	≤600 watts
Laser template:	pure diode (NICHA)
Laser emission angle:	<1.6mrad (full angle)
Laser spot size:	<Size at the light outlet ≦6.5mm
Modulation voltage:	≦100KHz
Graphic scanning speed:	35K-galvanometer
Galvanometer pattern scanning angle:	+/-30 degrees (60 degrees)
Control method:	Built-in single-chip microcomputer running program main control board, ILDA standard 25-core connection cable/sound control/self-propelled/DMX512(26-channelmode)/master-slave connection/built-in SD storage card with rich animation + line + text materials, and can be used in conjunction
Waterproof level:	(IP level) IP65

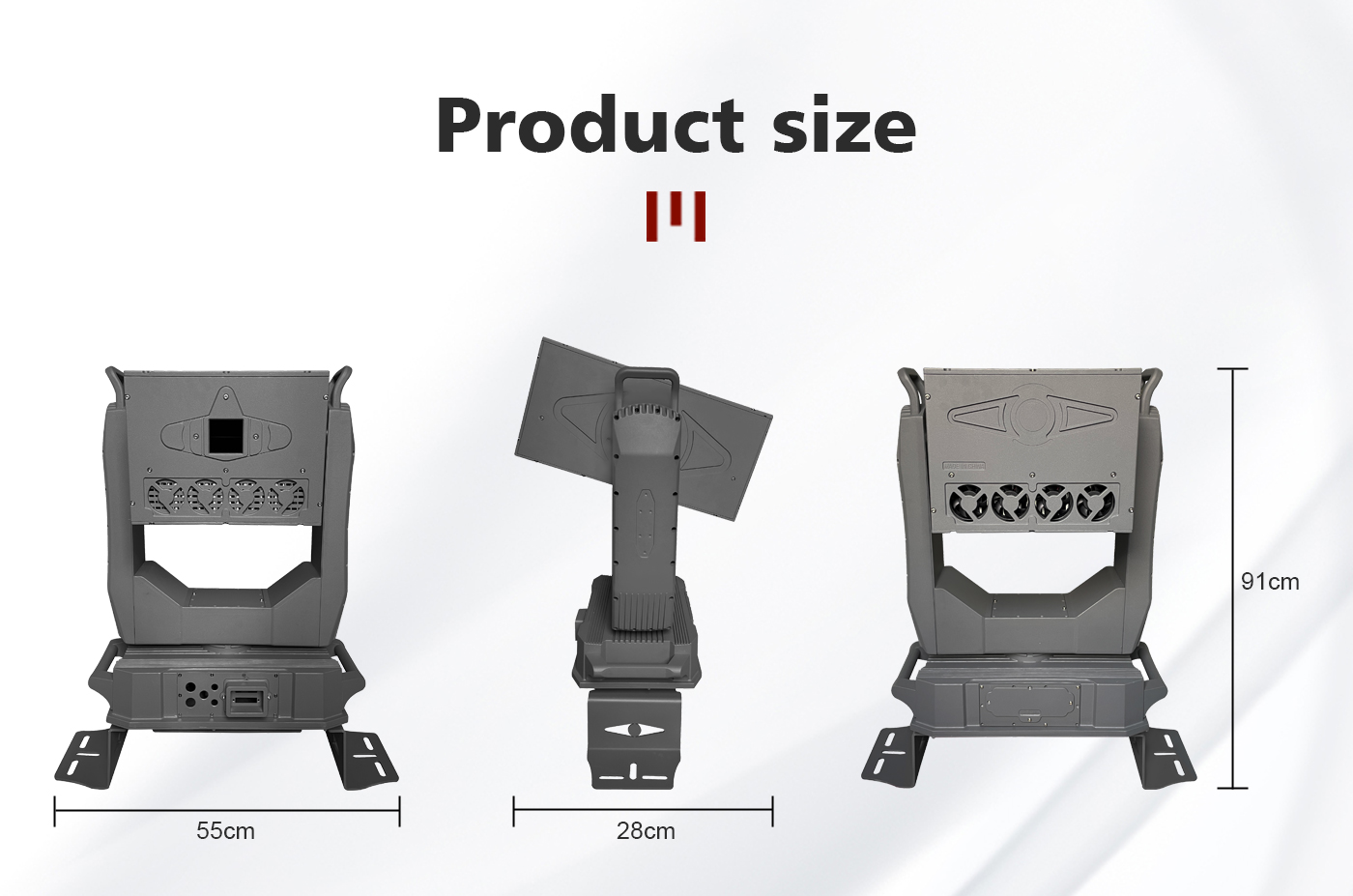

Product size:	550X280X910MM
Product net weight:	60KG

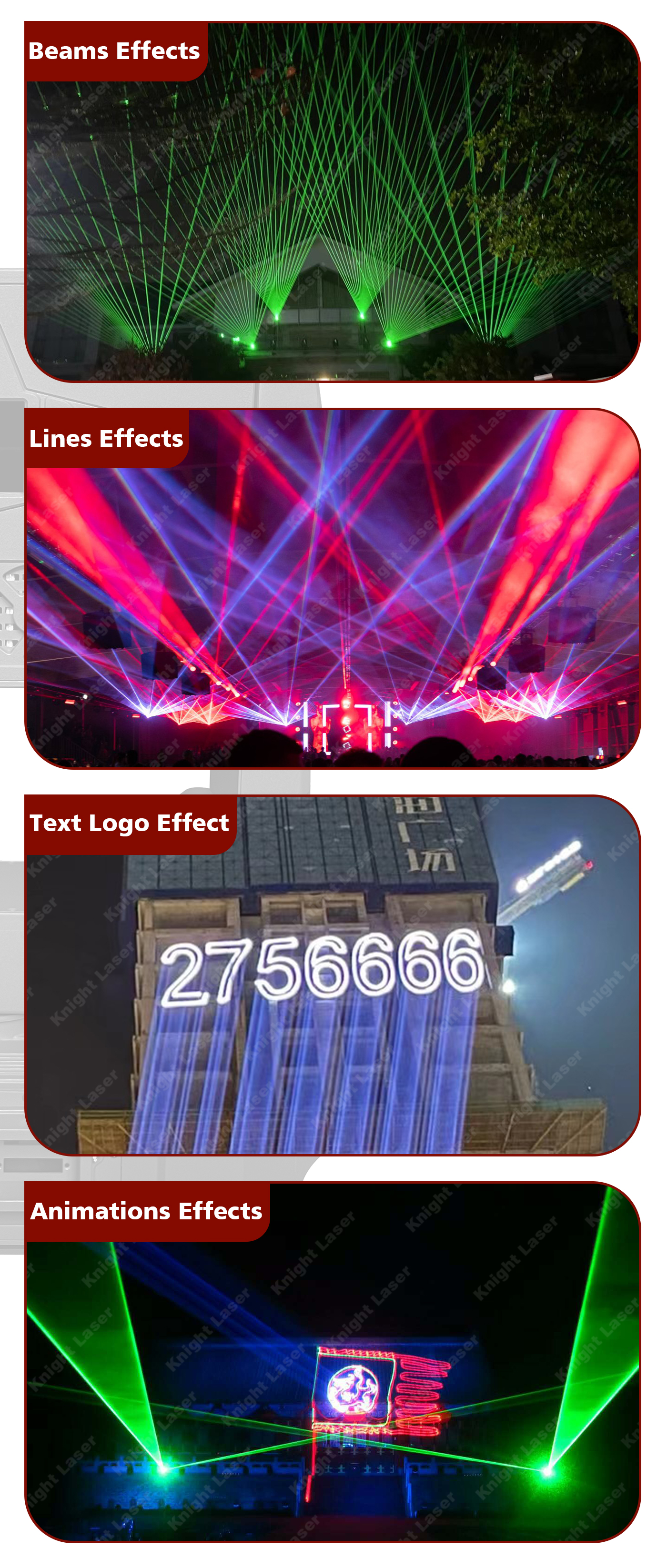

Application scenarios:	cultural tourism landscape projects/outdoor landmarks/water curtain fountains/large electronic music festivals/mountain advertising text, etc.
